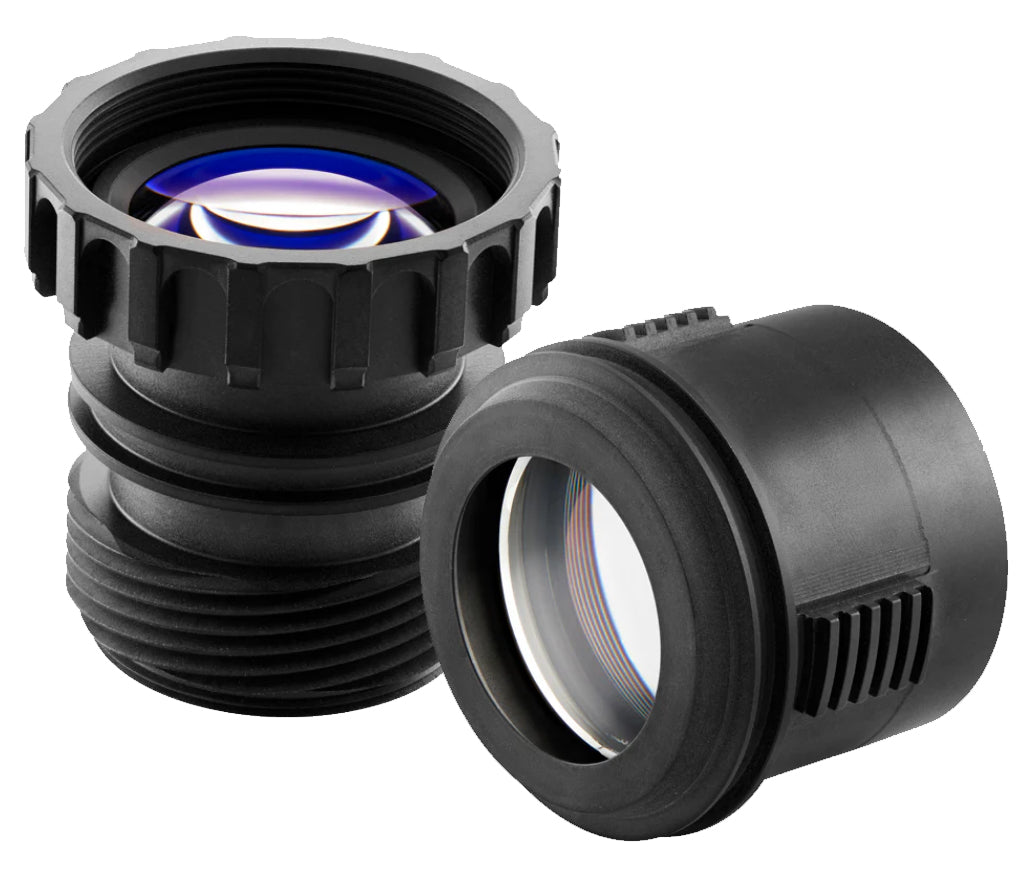

PVS-14 Ultralight Objective & Eyepiece SET

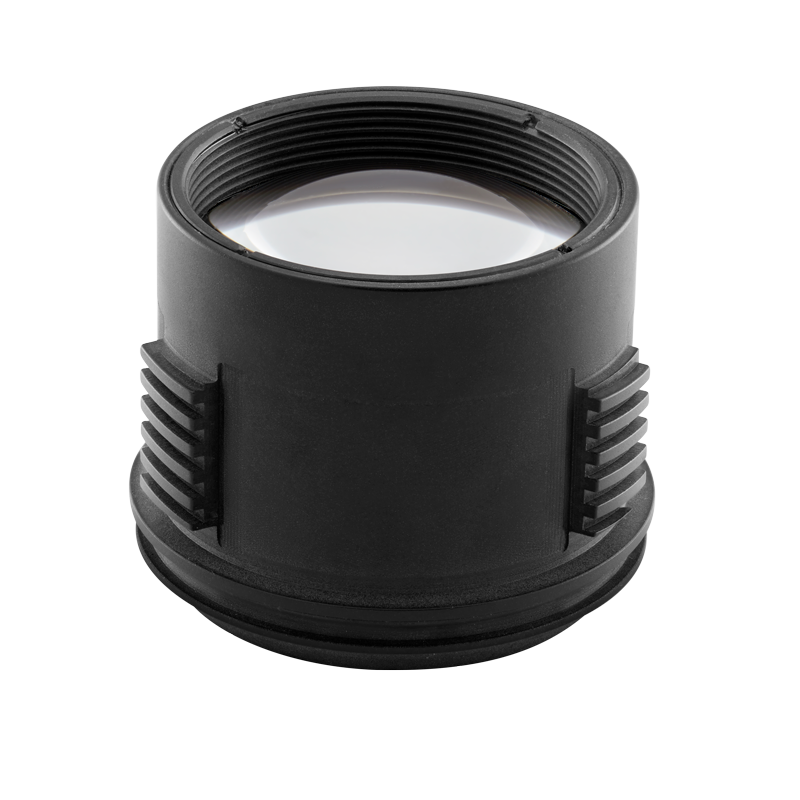

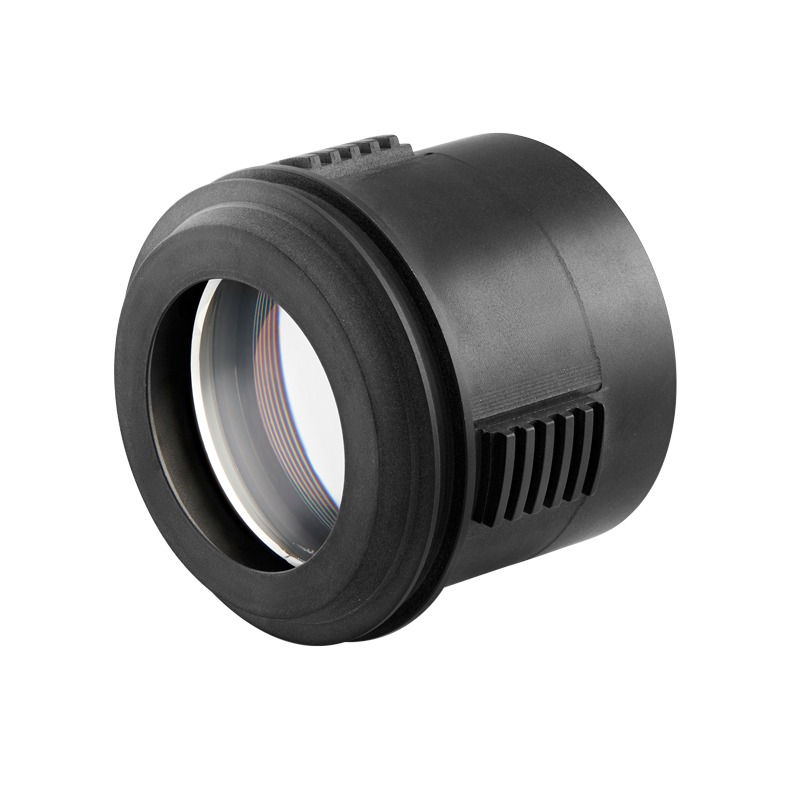

RPO Part Number:

5A0846

Eye Relief:

28mm

Weight:

≤ 41.0 grams (<27 grams cell itself)

EFL:

27.03 +/- 0.5mm

Flange Focal Distance:

10mm + 0.28mm/-0.42mm

Exit Pupil Diameter:

>=14mm on axis

Field of View:

40.0º +/- 1º for an 18mm image format

Diopter focus:

+2 to -6 diopters at 25mm eye relief*

Transmission:

≥ 85% weighted avg. from 450-680nm

Distortion:

-8%, +/- 0.5% at semi-field angle of 20º

Environmental:

Eyepiece in accordance with MIL-STD-810

Immersion:

20 meters for not less than 2 hours

*Diopter travel limited to +2 to -3 with eye cup adapter installed

RPO Part Number:

5A0566

Eye Relief:

<= 38 grams

EFL:

27.03 +/- 0.5mm

Flange Focal Distance:

no less than 1.0 mm

F-number:

<= 1.23

Field of View:

40.0º +/- 2 º for a 17.5mm image format

Relative Illumination:

>= 40% of the on-axis illumination

Distortion:

-8% , +/- 0.5% at semi-field angle of 20º

Immersion:

20 meters for not less than 2 hours
