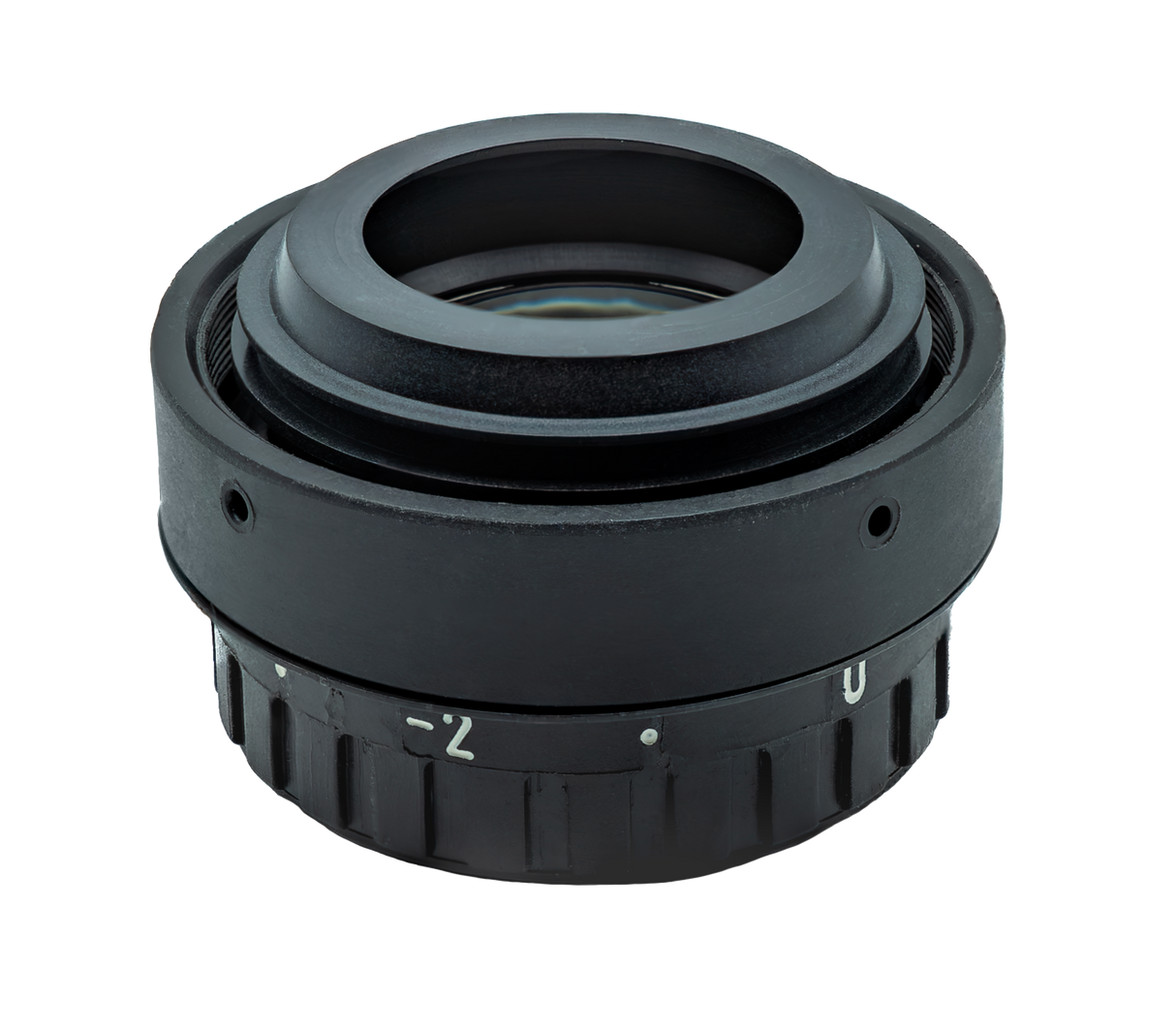

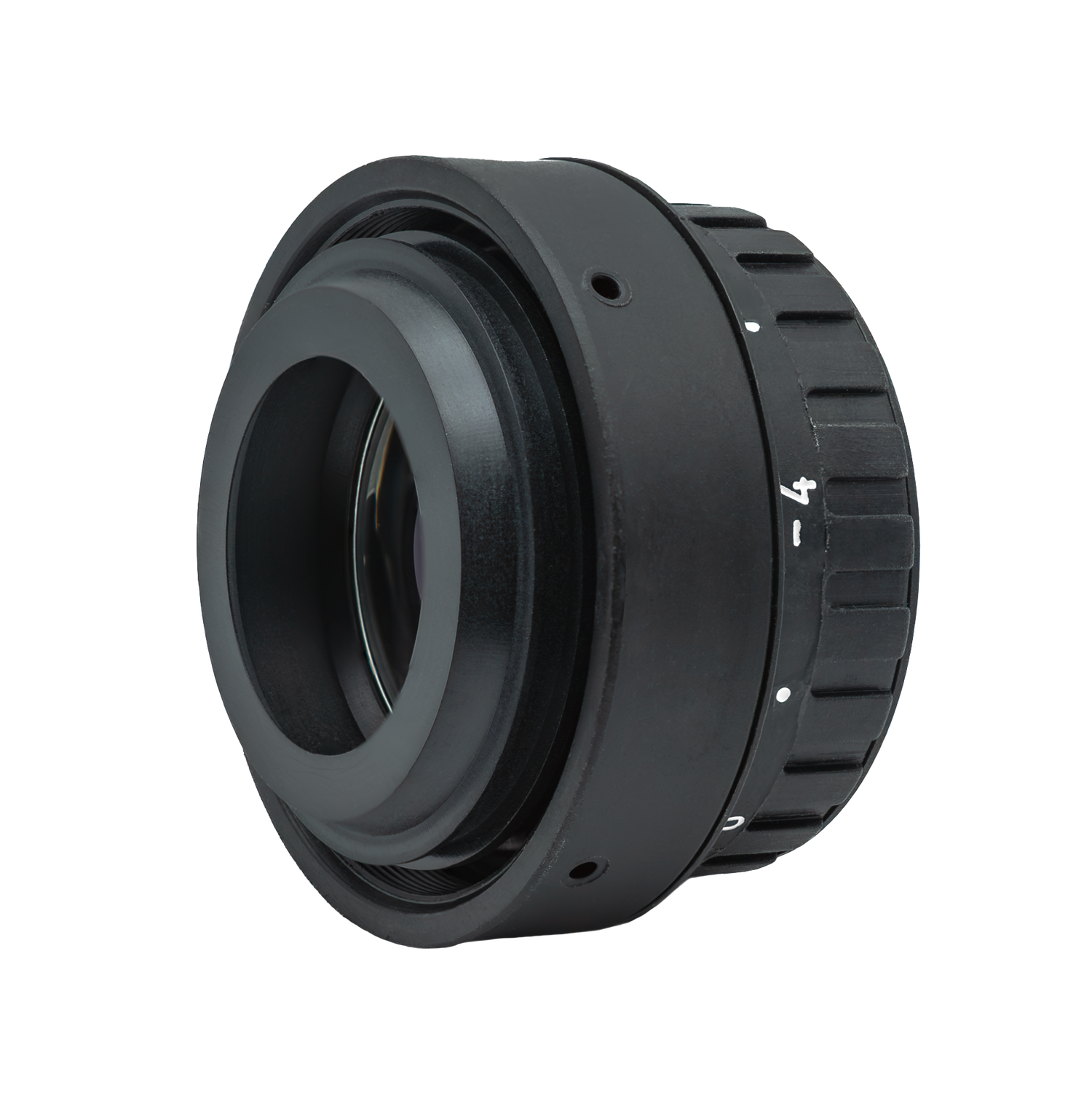

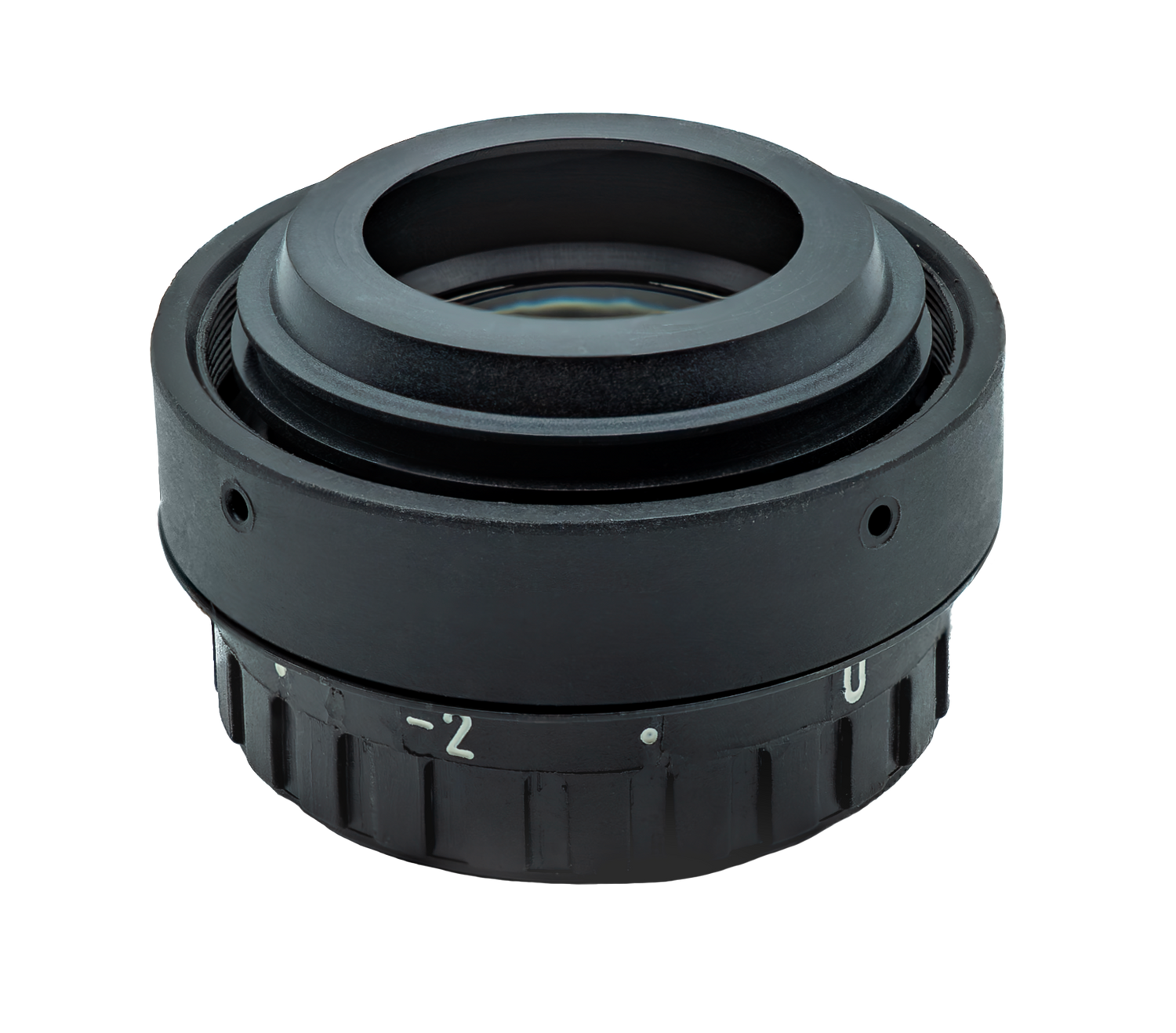

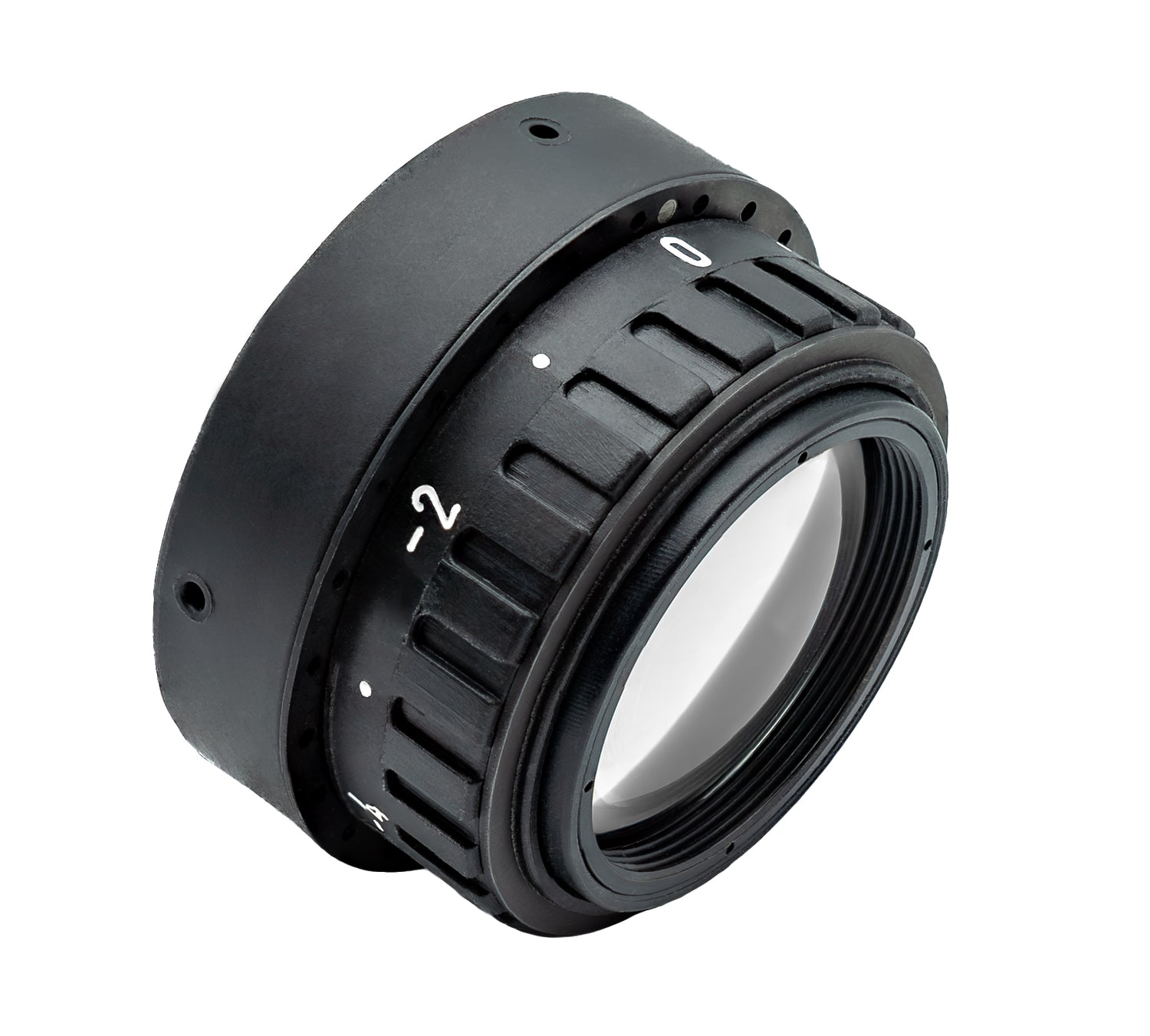

PVS-14 Ultralight Eyepiece with Diopter ONLY
PVS-14 Ultralight Eyepiece with Diopter ONLY is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
PVS-14 Ultralight Eyepiece with Diopter ONLY
Product Specifications
Product Specifications
RPO 18mm Ultralight Night Vision Optical Lens Assemblies provide the world’s lightest night vision eyepiece & objective lens assemblies expertly designed for use in commercial night vision systems utilizing a 18mm Image Intensifier Tube. The RPO 18mm Ultralight Night Vision Assemblies are the ultimate Commercially-available Off The Shelf (COTS) night vision optical product solutions for 18mm Night Vision Systems designed and intended for law enforcement, security professionals, sporting and hunting applications where performance and reduced weight are critical.
|
RPO Part Number: |
5A0846 |
|
Eye Relief: |
28mm |
|
Weight: |
≤ 41.0 grams (<27 grams cell itself) |
|
EFL: |
27.03 +/- 0.5mm |
|
Flange Focal Distance: |
10mm + 0.28mm/-0.42mm |
|
Exit Pupil Diameter: |
>=14mm on axis |
|
Field of View: |
40.0º +/- 1º for an 18mm image format |
|
Diopter focus: |
+2 to -6 diopters at 25mm eye relief* |
|
Transmission: |
≥ 85% weighted avg. from 450-680nm |
|
Distortion: |
-8%, +/- 0.5% at semi-field angle of 20º |
|
Environmental: |
Eyepiece in accordance with MIL-STD-810 |
|
Immersion: |
1 meter for not less than 30minutes* |
|
|
*66 feet of seawater or equivalent pressure of fresh water for a minimum of 2 hours per SOF MIL-SPEC PS/04/8236/003 available. |
Compliant with Optical Performance Criteria, MIL-PRF-49427B Lens Assembly, Eyepiece for Monocular Night Vision Device, AN/PVS-14
