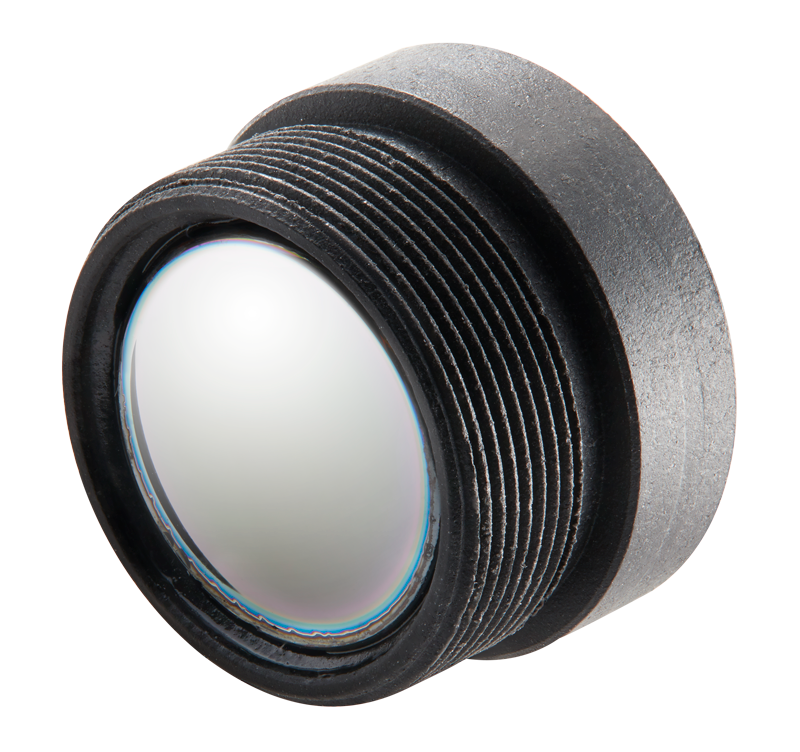

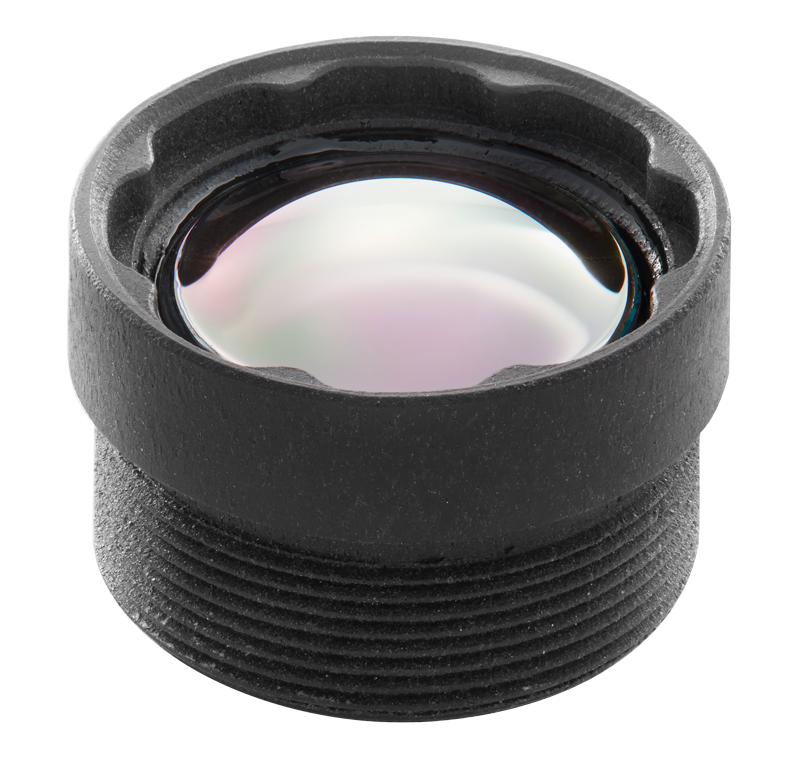

9.1mm LWIR Assembly
9.1mm LWIR Assembly is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
9.1mm LWIR Assembly
Product Specifications
Product Specifications
Optical Performance for 320 x 240 / 12μm Detector
|
PARAMETER |
NOTES |
DESIGN VALUE |
|
MTF - min Sag/Tan at 41.6cyc/mm |
Diffraction Limited (Ref. only) On-axis VFOV HFOV Corner |
46.2% 44.3% 43.5% 36.8% 27.5% |
|
EFL |
Magnification Based |
9.1mm |
|
F/ # |
Aperture-based |
1 |
|
Field of View |
Vertical Horizontal Diagonal (corner) |
18.3 Deg. 24.5 Deg. 30.8 Deg. |
|
Relative Illumination |
At HFOV At Corner Field |
95% 92% |
|
Distortion |
at HFOV At Corner Field |
-2.1% -3.4% |
|
Fixed-Focus Object Range |
Range for 10% MTF drop w/o refocus |
5.0 to Infinity |
|
Athermal Temp Range |
Range for 10% MTF drop w/o refocus |
-40 to +65 degC |
|
Operating Waveband |
LWIR Thermal Waveband |
8-12μm |
|
Transmission |
HEAR coated witness samples (8-12μm) |
>95% |
Optical Performance for 320 x 240 / 12μm Detector
|
PARAMETER |
NOTES |
DESIGN VALUE |
|
Height |
Front to back lens assembly |
9.627mm |
|
Thread Interface |
Lens assembly outer thread |
M14 x 0.5 |
|
Working Distance to Image Plane (FPA) |
Assumed 0.56mm Si window, nominal focus at infinity |
6.641mm |
|
Max Exposure Temp |
Storage/post-processing |
140 degC |
OPTICAL
- 9.1mm EFL, F/1.0 Lens
- 24.5 deg HFOV on a 320 x 240/12μm detector
- Two-element design
- Utilizes aspheric and diffractive technologies
- High Efficiency AR coating for LWIR 8-12μm
- Optically Athermalized using Classic-6 material
MECHANICAL
- Small size and weight
- Precision molded chalcogenide lenses
- 20% glass-filled Black Polycarbonate Housing
- Threaded interface enables adjustable focus
RESOLUTION
|
|
160x120 |
320x240 |
384x288 |
640x480 |
1024x768 |
|
PIXEL SIZE |
|
|
|
|
|
|
34μm |
35.1 |
82.6 |
N/A |
N/A |
N/A |
|
25μm |
25.6 |
53.5 |
67.6 |
N/A |
N/A |
|
17μm |
17.3 |
35.1 |
42.6 |
82.6 |
N/A |
|
12μm |
12.2 |
24.5 |
29.6 |
51.0 |
N/A |
|
10μm |
10.2 |
20.4 |
24.5 |
41.7 |
74.3 |
