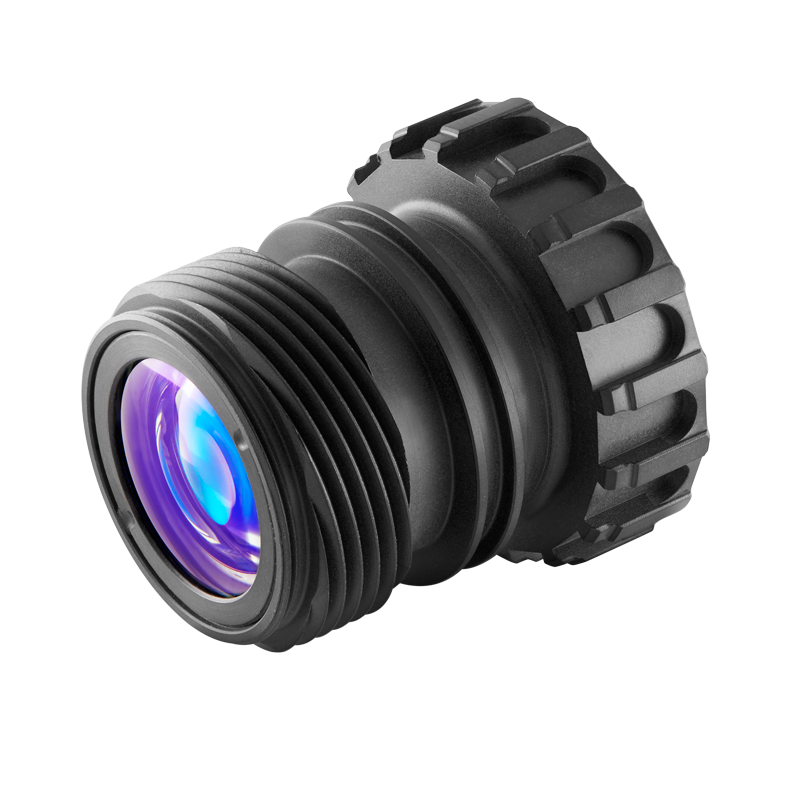

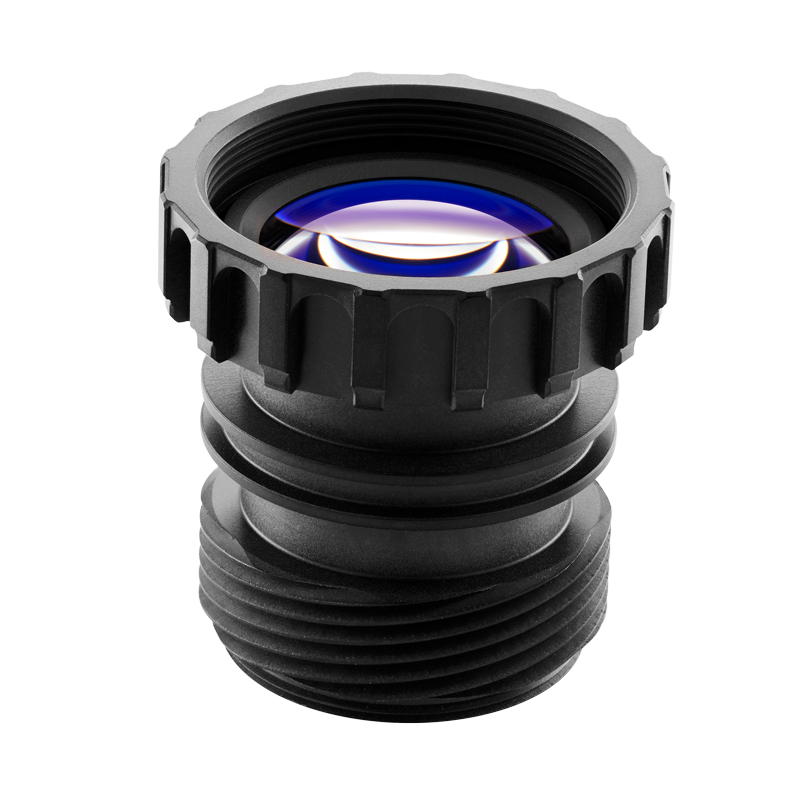

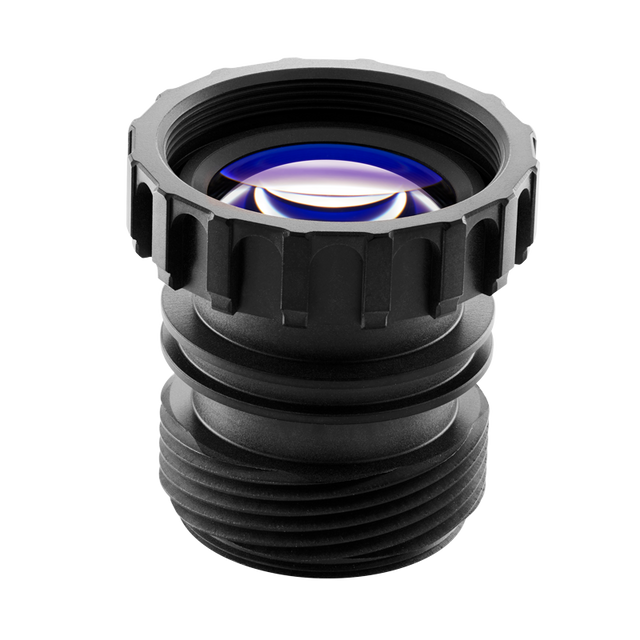

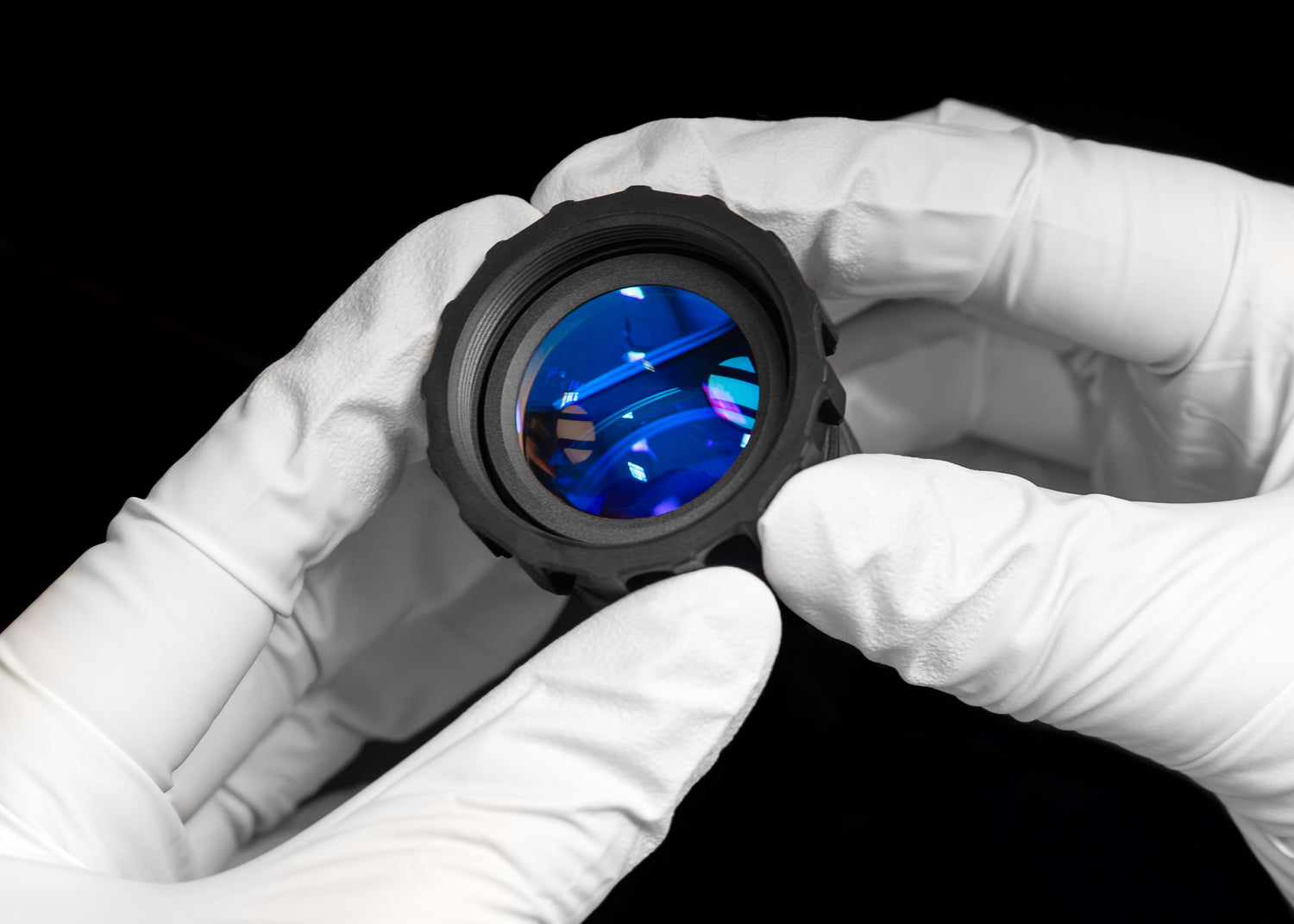

PVS-14 Ultralight Objective Assembly
PVS-14 Ultralight Objective Assembly is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
PVS-14 Ultralight Objective Assembly
Product Specifications
Product Specifications
RPO 18mm Ultralight Night Vision Optical Lens Assemblies provide the world’s lightest night vision eyepiece & objective lens assemblies expertly designed for use in commercial night vision systems utilizing a 18mm Image Intensifier Tube. The RPO 18mm Ultralight Night Vision Assemblies are the ultimate Commercially-available Off The Shelf (COTS) night vision optical product solutions for 18mm Night Vision Systems designed and intended for law enforcement, security professionals, sporting and hunting applications where performance and reduced weight are critical.
|
RPO Part Number: |
5A0566 |
|
Eye Relief: |
<= 38 grams |
|
EFL: |
27.03 +/- 0.5mm |
|
Flange Focal Distance: |
no less than 1.0 mm |
|
F-number: |
<= 1.23 |
|
Field of View: |
40.0º +/- 2 º for a 17.5mm image format |
|
Relative Illumination: |
>= 40% of the on-axis illumination |
|
Distortion: |
-8% , +/- 0.5% at semi-field angle of 20º |
|
Immersion: |
20 meters for not less than 2 hours |
Compliant with Optical Performance Criteria, MIL-PRF-49427B Lens Assembly, Eyepiece for Monocular Night Vision Device, AN/PVS-14
